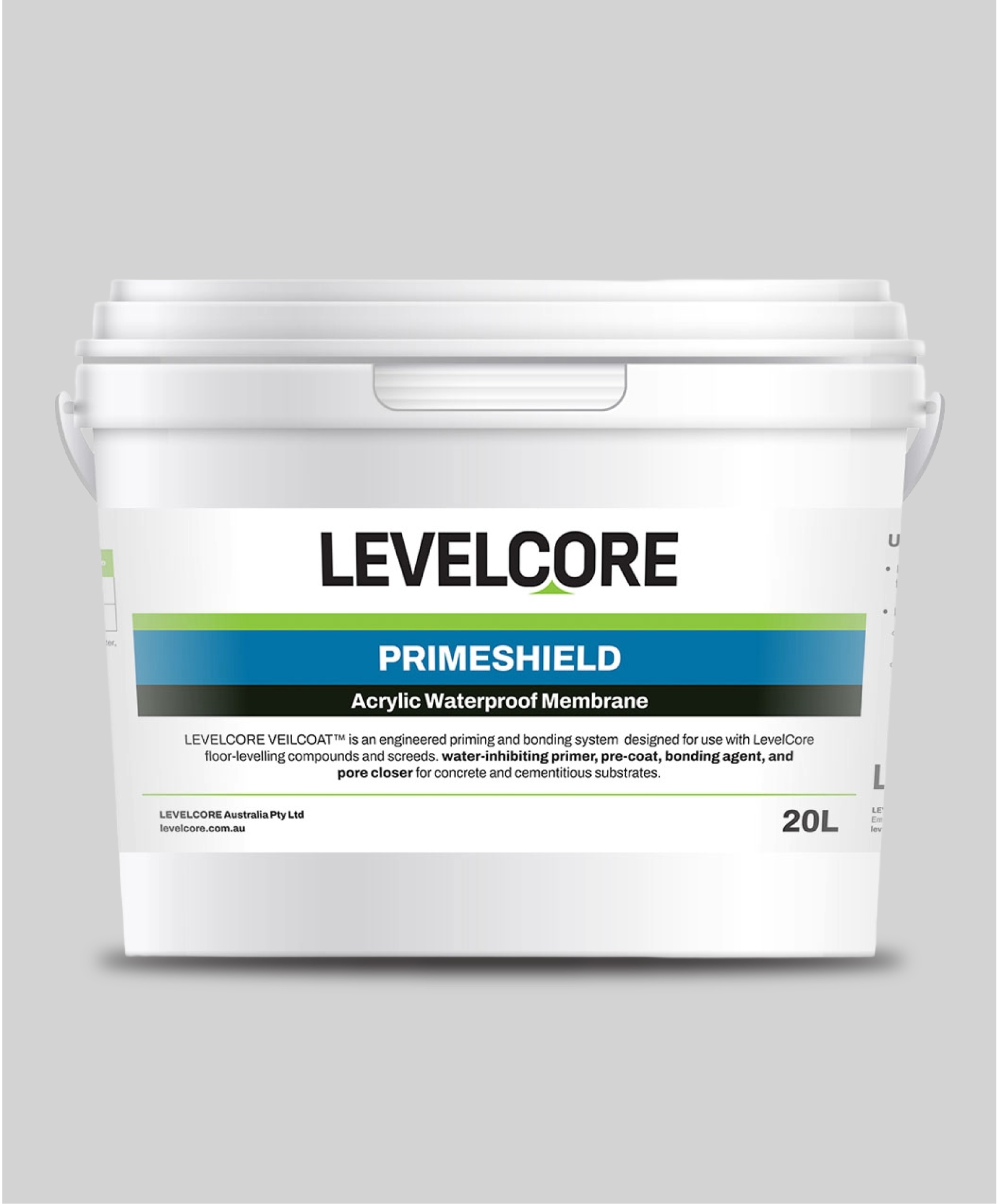

LEVELCORE® PrimeShield
Acrylic Moisture Barrier / Primer (Interior)
Single-component acrylic copolymer moisture barrier for interiors that helps prevent rising damp, control efflorescence, and resist negative hydrostatic pressure on interior substrates.
Why it’s different: LEVELCORE PrimeShield bonds tenaciously to masonry, concrete block, concrete, and stone and is easy to apply by brush, roller, or airless spray—no mixing, no fuss.
Ideal for: Interior commercial and residential floors and walls before flooring, leveling compounds, tile, or coatings.
Product Description

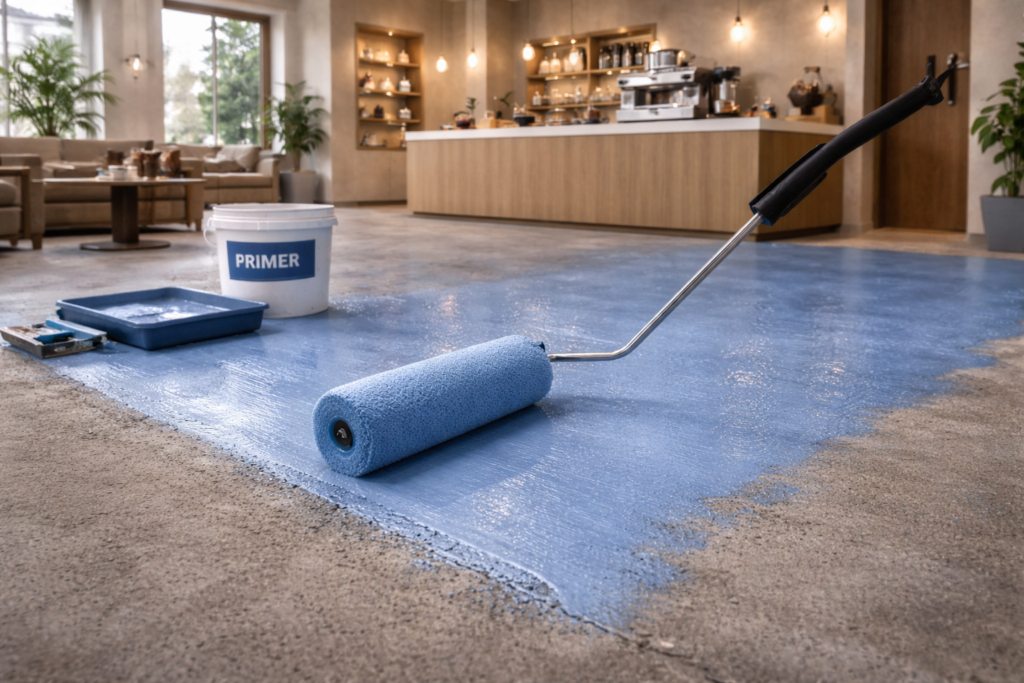

LEVELCORE PrimeShield is a ready-to-use moisture barrier/primer designed for internal commercial and residential floors and walls. It bonds strongly to common mineral substrates and can be applied by brush, roller, or airless spray.
PrimeShield is designed to support reliable bonding of subsequent systems and finishes when installed to specification. Always verify compatibility and requirements in the TDS.
Key Benefits
Damp Protection
Helps prevent rising damp and control efflorescence
Negative Pressure Resistance
Designed to resist negative hydrostatic pressure from the substrate side.
Excellent Adhesion

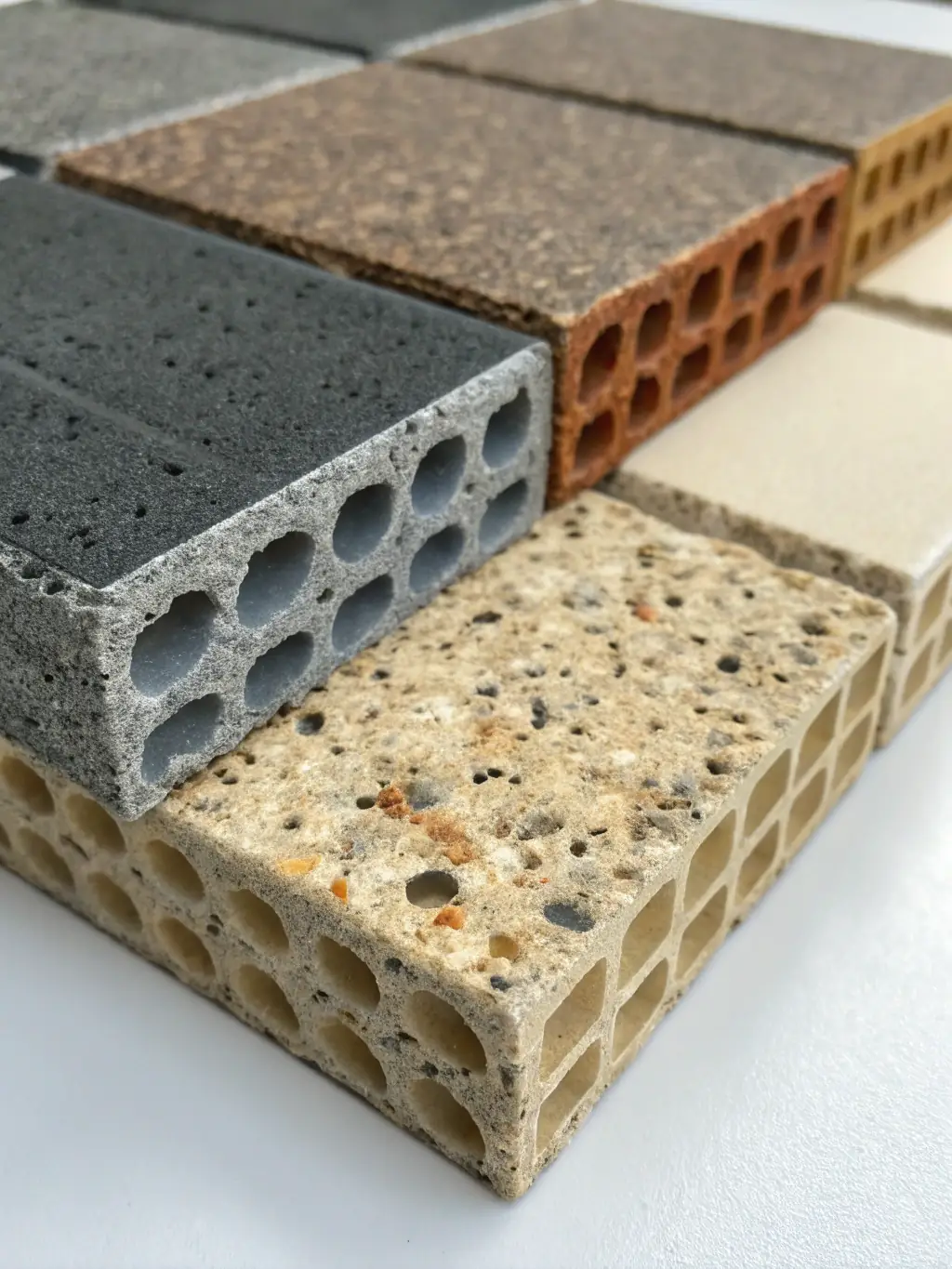

Excellent adhesion to masonry, concrete block, concrete, and stone.
Single Component
Single-component (no mixing).
Fast Application
Fast application by brush, roller, or airless spray.
Versatile Underlay Use
Use beneath levelling compounds, tile, and many floor finishes (verify in TDS).
Continuous Film Protection
Forms a smooth, continuous film build for reliable protection
Interior Use Only
Interior use only (must be covered by the subsequent system).
Where To Use

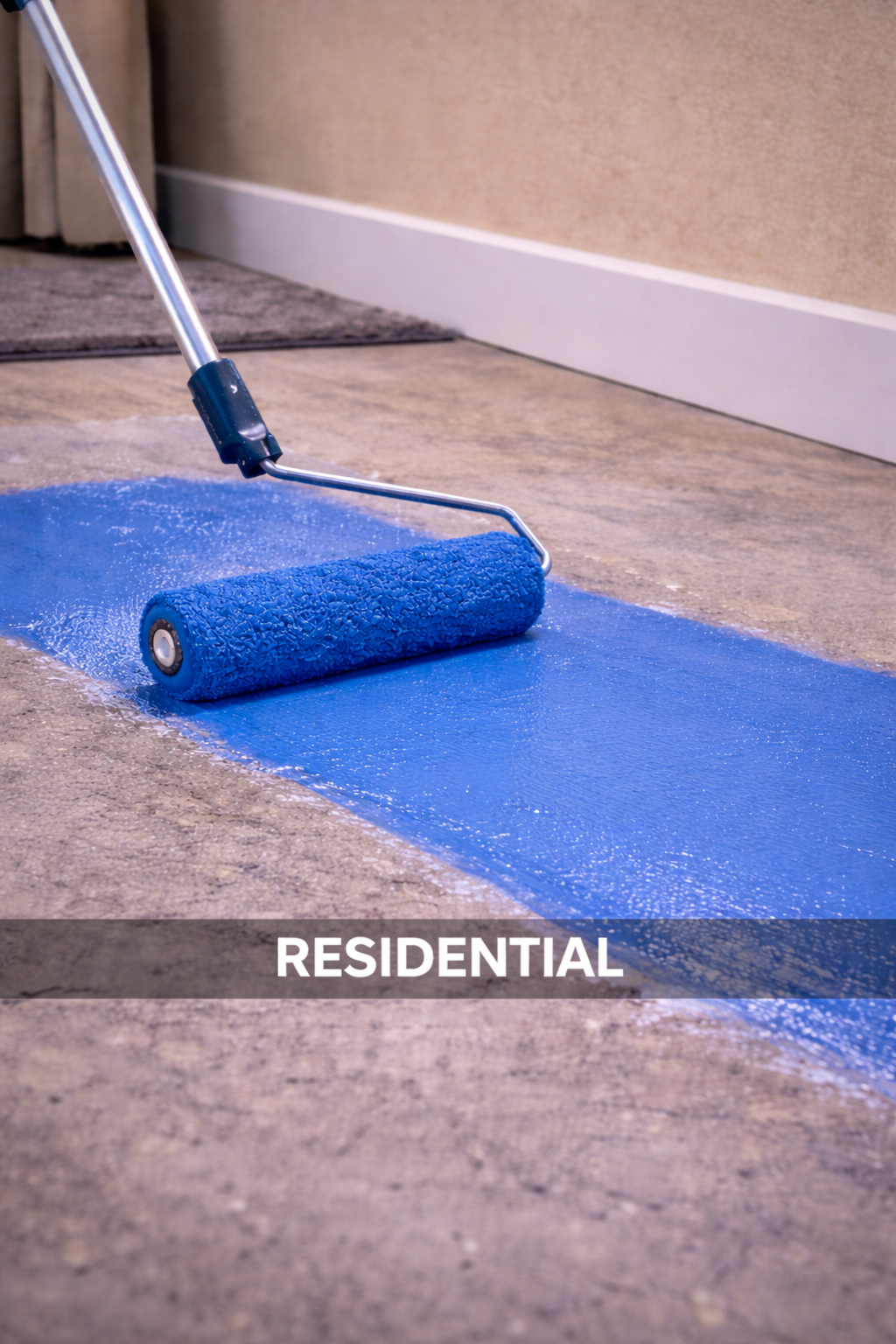

Residential Interiors
Basements & cellars
Interior side of below-grade walls/slabs
Bathrooms, laundries, powder rooms
Under tile or underlayment as a sealer/primer
Kitchens & pantries
Under resilient or tile systems in moisture-prone zones
Living areas on slab
As part of a moisture-control system prior to flooring

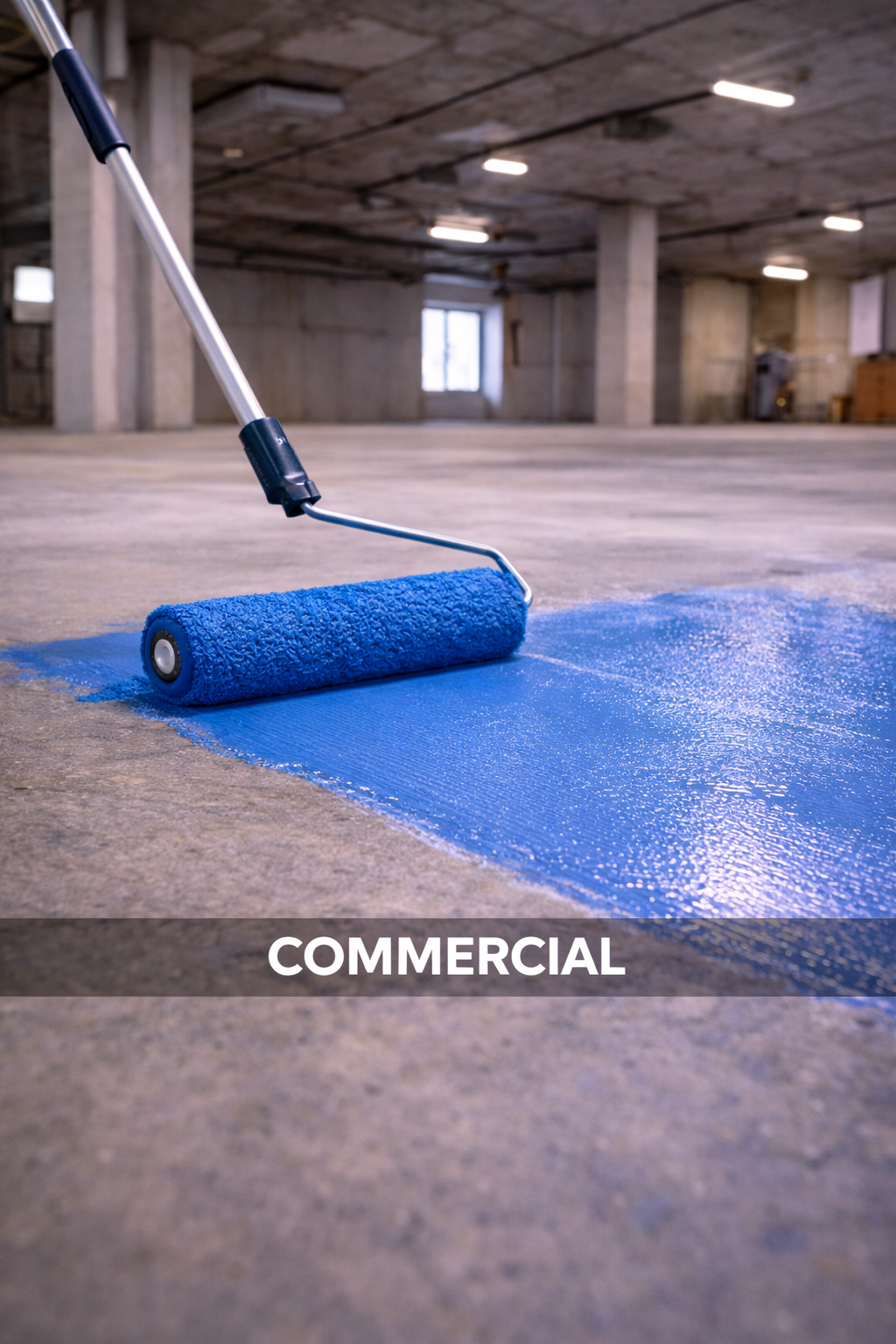

Commercial Interiors
Retail & offices
Slab-on-grade prior to carpet tile, LVT, rubber, resilient
Hospitality & multifamily
Corridors, bathrooms, laundry rooms, amenity areas
Healthcare & education
Service rooms, locker rooms, interior plant rooms
Parking-adjacent interiors
Where inward moisture pressure is a risk
Not intended for: exterior/UV-exposed surfaces or as a traffic-bearing topcoat. Protect with tile, underlayment, screed, or finished flooring system as specified.
Simple How-To
1.

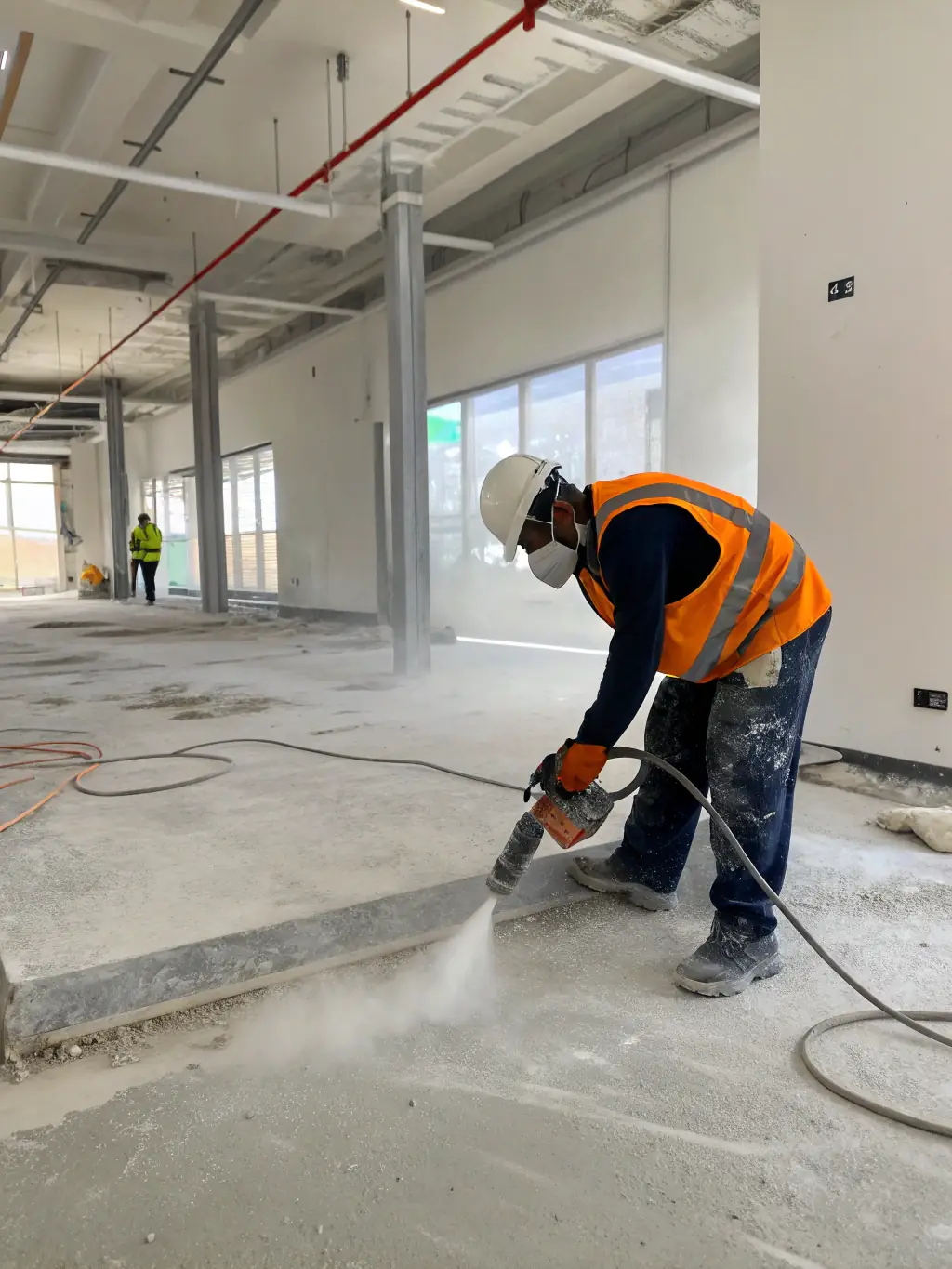

Prepare
Substrate must be sound, clean, and free of dust, laitance, curing agents, oil, and loose
material
2.
Mask and Stage
Protect adjacent finishes and plan for uniform film build.
3.
Apply PrimeShield
Brush, roller, or airless spray to the specified film build; apply multiple coats if required with correct dry time between coats.
4.
Protect and Overcoat
Once cured, install approved underlayments, tile adhesives, or floor finishes per manufacturer guidance.
Coverage rates, number of coats, and cure/recoat timing must follow the PrimeShield TDS.
Quick Specs
Type
Single-component acrylic copolymer moisture barrier / primer
Application
Brush, roller, or airless spray
Colour
Blue
Coverage / Coats / Dry Times / Packaging
Refer to TDS (varies by substrate and required film build)
Dry / Recoat time
5 minutes

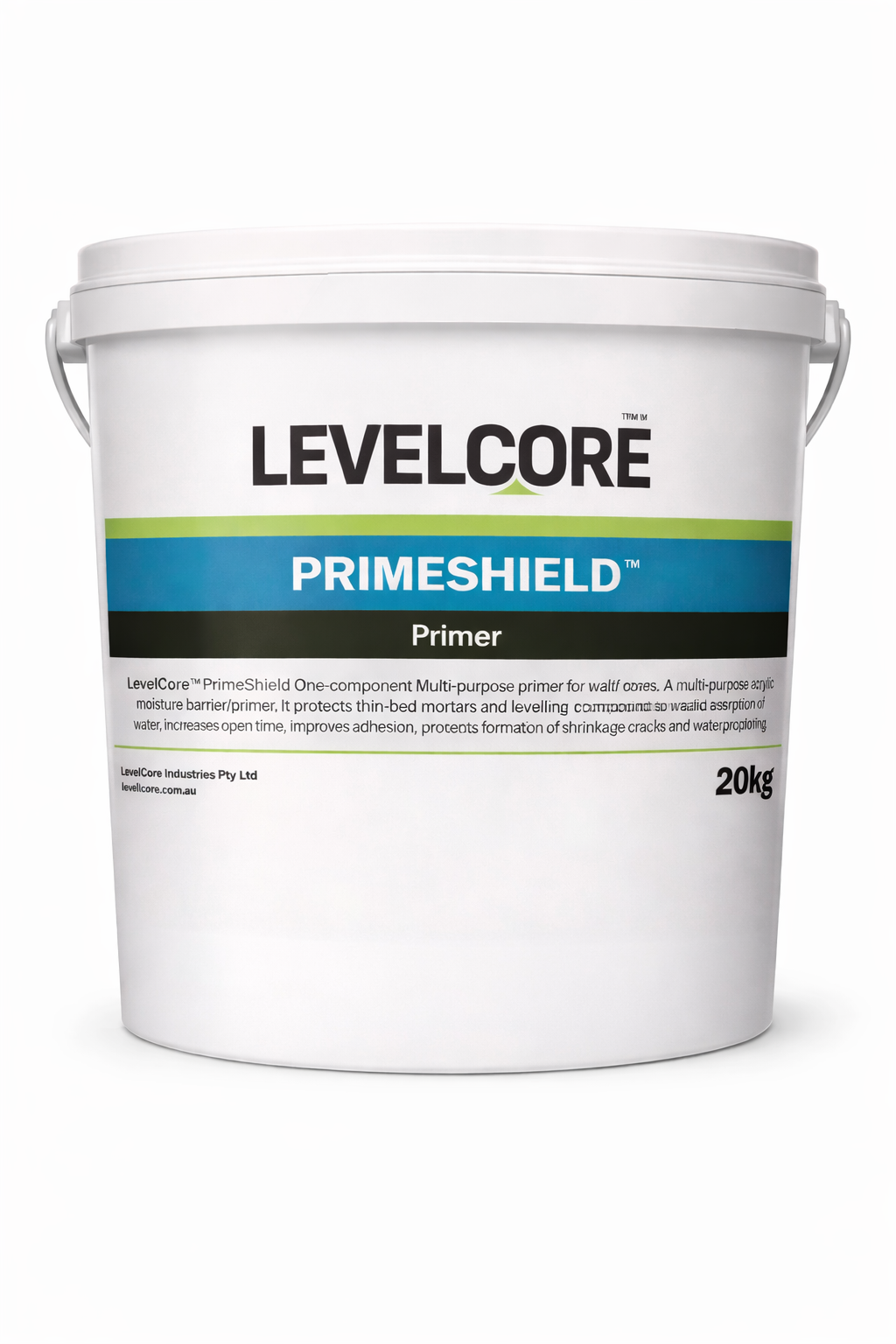

Packaging
20kg/pail
Technical Downloads
LEVELCORE® PrimeShield™ is a single‑component acrylic moisture barrier / primer for walls and floors. It’s designed to help control moisture movement through interior substrates (helping reduce rising damp and efflorescence) and to support reliable bonding of subsequent systems.
PrimeShield helps protect thin‑bed mortars and self‑levelling compounds from rapid water loss into porous substrates—extending open time, improving adhesion, and helping reduce shrinkage cracking. It is solvent‑free, ready to use, and applies easily by brush or roller to form a uniform film.
Suitable for priming and strengthening a wide range of common building substrates including masonry, concrete, screeds, plaster and board substrates before tiling, plastering, self‑levelling compounds, and compatible floor finishes. Always follow the Technical Data Sheet for approved substrates, coverage, coat requirements, and curing/recoat times.
Under normal conditions of use, PrimeShield is not expected to present unusual hazards. Avoid contact with eyes and prolonged or repeated skin contact. Avoid breathing spray mist or dust generated during sanding/clean‑up, and ensure adequate ventilation during application and drying.
First Aid:
- Eyes: Rinse immediately and repeatedly with water. If irritation persists, seek medical advice.
- Skin: Wash exposed areas promptly with water.
- Inhalation: Move to fresh air and remain away from exposure until symptoms subside.
- Ingestion: Do not induce vomiting. Seek prompt medical attention.
Handling & Storage:
- Keep container closed when not in use. Store in a cool, dry, well‑ventilated area.
- Wear suitable protective equipment; use a dust mask/respirator where dusty conditions exist.
Fire / Transport:
- Not combustible under normal storage and use. Use extinguishing media suitable for the surrounding fire.
- Not listed as a dangerous good for common transport regulations.
For full details, always refer to the complete PrimeShield Safety Data Sheet (SDS).
PrimeShield™ is a one‑component, multi‑purpose acrylic moisture barrier / primer for walls and floors. It is solvent‑free and ready to use, improving substrate strength and adhesion while helping protect mortars and levelling compounds from rapid water loss.
Recommended for:
- Moisture barrier / primer for plaster, gypsum fibre boards, MGO boards, plasterboard, concrete, asphalt, render, sand/cement screed, anhydrite screed and brickwork before tiling
- Walls prior to gypsum-based plaster over suitable masonry/concrete substrates
- Internal mastic asphalt screeds prior to tile adhesives
- Priming prior to self‑levelling compounds
- Strengthening weak, absorbent screeds and plasters prior to tiles and mosaics
For complete requirements, application steps, and technical values, refer to the full PrimeShield Technical Data Sheet (TDS).
VOC Emissions Test Report
Third-party laboratory results for VOC emissions/IAQ compliance evidence. Use this document for specification and project submission requirements.
Warranty Details
PrimeShield can be covered under the LevelCore 10-Year System Warranty when warranty requirements are met, including:
- Installed by a LevelCore Accredited Installer
- Follow the relevant TDS strictly (prep, ambient conditions, mixing, application)
- Installation recorded with required QA documentation
- Use the full LevelCore system (mixing brands / using non-LevelCore products voids warranty)
10-Year System Warranty
QA submissions:
Submit QA forms and media within 5 working days via the Levelcore Portal or email.
Warranty contacts:
warranty@levelcore.com.au | 1800 717 398
Frequently Asked Questions
Can I apply PrimeShield by spray?
Yes – it can be applied by airless spray as well as brush or roller.
Is it suitable under self‑leveling underlayments or tile?
Yes – designed as part of interior systems under SLPs and tile. Confirm compatibility in the TDS.
Will it stop efflorescence?
PrimeShield helps control efflorescence by blocking moisture movement that carries salts to the surface.
Can I use it outside or leave it exposed?
No – interior use only and should be covered by the subsequent system.
What about very damp or green concrete?
Follow the TDS for concrete age and moisture conditions and complete all required preparation prior to application.
